Moza AY210 Force Feedback Yoke Base [AS011]

Moza AY210 Force Feedback Yoke Base

• Precision Control, True-to-Life Flight

Designed for both general aviation and commercial airliners, the MOZA AY210 Yoke Base features proprietary MCLS force feedback technology, delivering an authentic and immersive flying experience.

• Made with High-strength Steel


The yoke's body is constructed from high-strength steel, delivering outstanding durability, structural rigidity, and a refined finish. This robust material ensures long-term stability and reliability, meeting the demands of professional flight simulation.

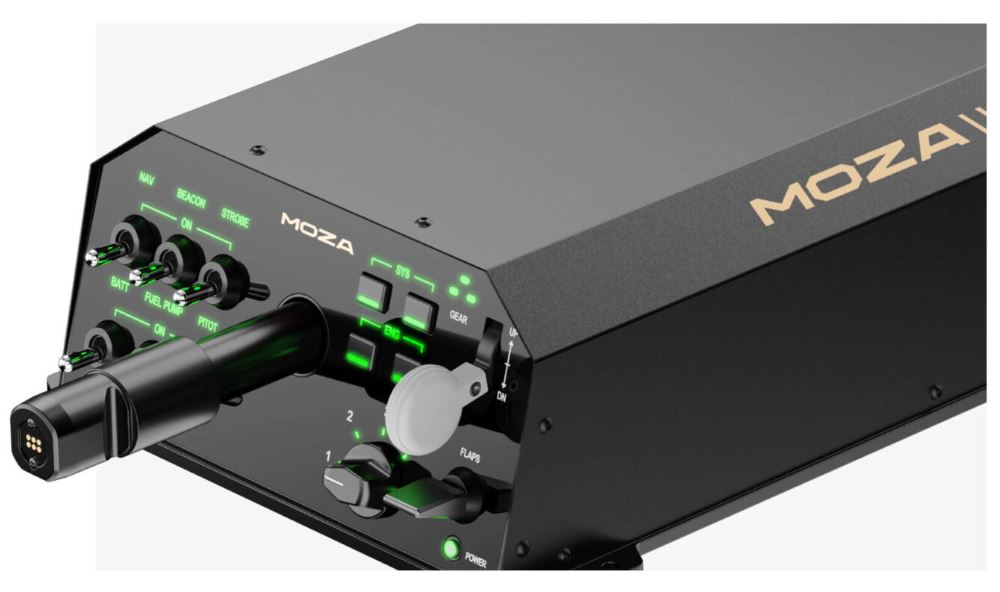

• All-Aluminum Quick-Release Mechanism

The yoke features a quick release mechanism, similar to those used in racing cars, enabling fast and effortless attachment or detachment from the flight base. This design allows for easy switching between different yokes to suit your needs.

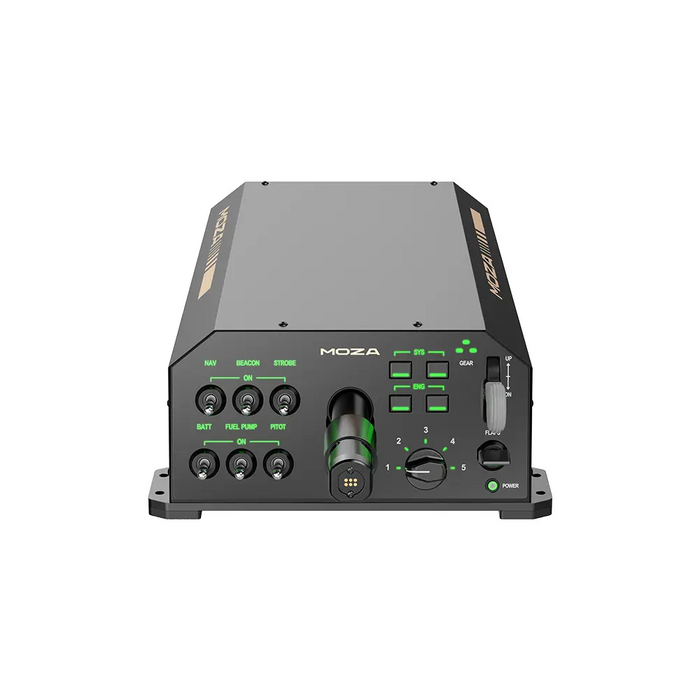

• Programmable Switch Panel


The front panel features 13 physical switches, fully customizable via the MOZA Cockpit software. Users can program these switches to manage advanced functions like lighting, telemetry, and long-press commands, delivering a more immersive experience during takeoff, landing, and flight.

• 150mm Travel Distance


With an extended 150mm range of motion, this system provides greater control and precision, meeting the demands of professional-grade performance.

• 9Nm Torque and 210N Push Force


The roll axis delivers a continuous torque of 9Nm, while the pitch axis can produce a peak push and pull force of 210N. These robust outputs ensure highly detailed feedback, faithfully simulating the dynamic handling and responsiveness of real aircraft.

• Full 180° Rotation, Realistic Handling


With a ±90° roll axis, the MFY yoke accurately replicates the movement range of real aircraft controls, ensuring smooth and precise maneuvering.

• High Performance, Instant Response


Powered by a 280MHz high-speed processor and a 15-bit high-resolution magnetic encoder, the system delivers ultra-responsive inputs—whether for fine-tuned adjustments or aggressive maneuvers—enhancing realism, immersion, and control.

• Compatible with Leading Flight Sim Games


The system works with most major flight simulation titles. It also supports built-in telemetry force feedback for games like Microsoft Flight Simulator 2020, Microsoft Flight Simulator 2024, and X-Plane 12.

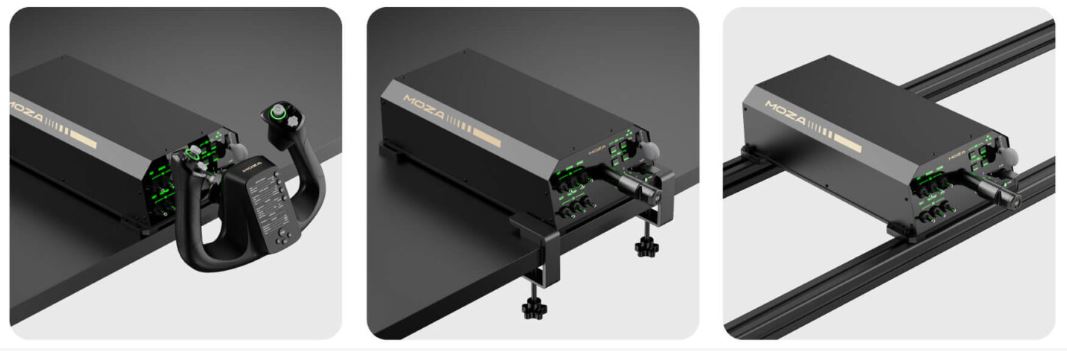

• Versatile Mounting Options


The system accommodates a range of mounting methods, including desktop mounting, suspended desktop clamping, direct installation on simulator cockpits, and aluminum profile mounts. This flexibility ensures compatibility with various setups and user preferences.

• Extensive Software Customization


MOZA Cockpit provides a wide range of customization options, enabling users to fine-tune settings such as lighting brightness and behavior. The software also features diverse force feedback presets to enhance the simulation experience.

• Built to Last, Tested to the Extreme


Engineered for durability, the frame and electronics undergo millions of extreme stress and endurance tests, guaranteeing reliable, long-term performance with no structural or electronic failures.

Specs

• Dimensions: 243 × 403 × 216 mm
• Housing Material: Aluminum alloy
• Weight: 8.0 kg
• Motors: Dual high-performance servo motors
• Max Pitch Force: 210N
• Sustained Roll Torque: 9 Nm
• Travel Distance: 150mm
• Compatible Yokes: MOZA Yoke Series
• Power: 216W
• Voltage: 110~220V AC → 36V DC
• Chip Precision: 15-bit magnetic encoder
• USB Refresh Rate: 1000Hz
• Mounting Options: Desktop clamp (optional), suspended desktop clamp (optional), direct mounting on a simulator cockpit
• Connection Ports: Power, USB, throttle, rudder pedals, panel, etc.
• Emergency Stop Switch: Optional
• Intelligent Telemetry Force Feedback: Supported (no plug-in required)
• Native Force Feedback: Supported
• Platform Support: PC
