Moza R9 V3 Direct Drive Wheel Base [RS080]

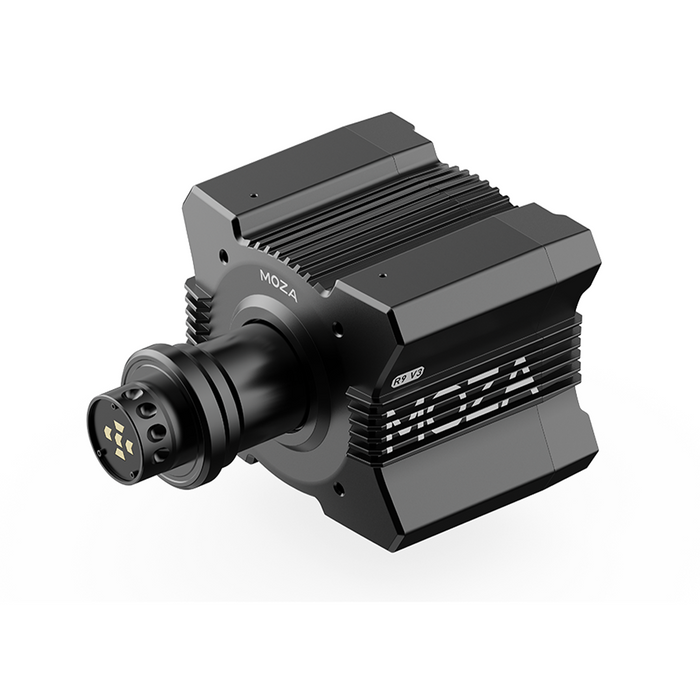

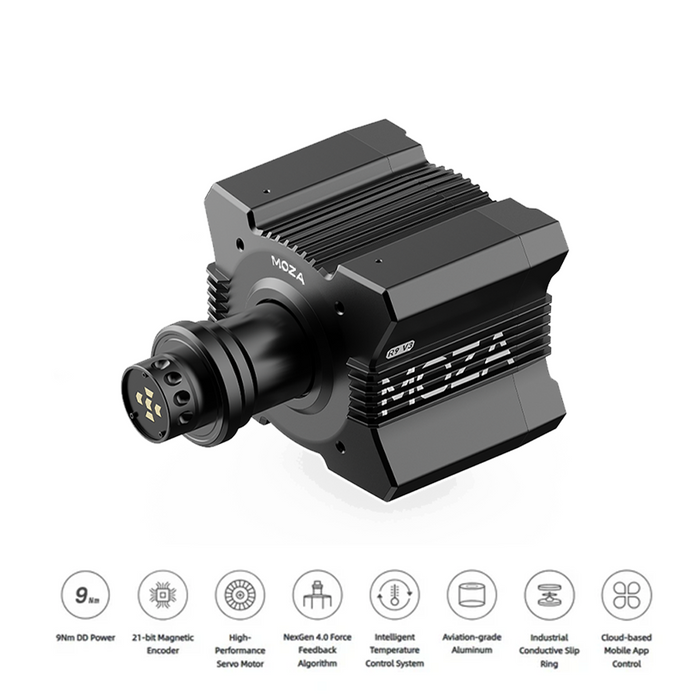

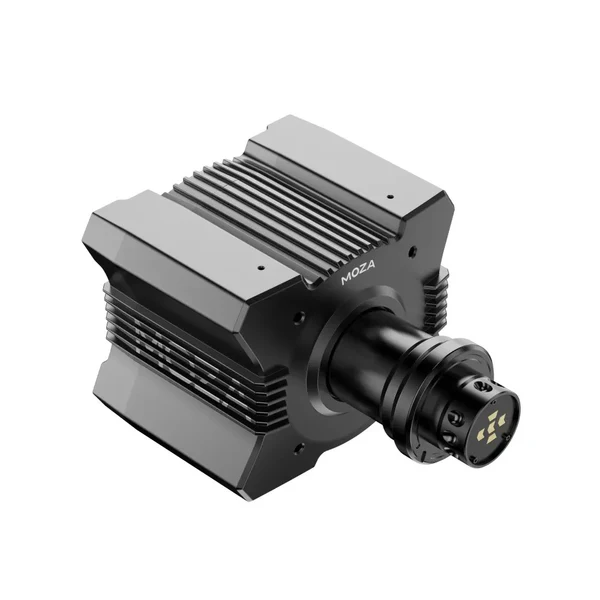

Moza R9 V3 Direct Drive Wheel Base

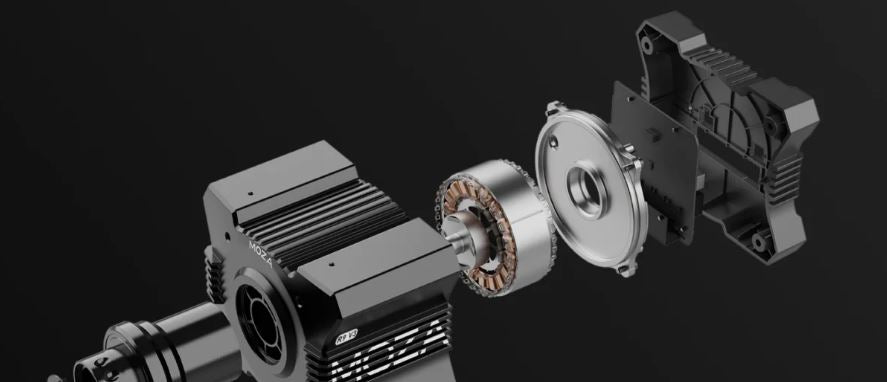

• 9 N·m of Torque from a Direct Drive Servo Motor


The R9's 9N·m of torque can simulate a full range of steering forces and car handling characteristics.

• 21-Bit Magnetic Encoder
  With 280MHz High-Performance Processor

Divides each full rotation into 2,097,152 precise steps
Delivers microscopic 0.00017° resolution
Enables ultra-smooth control feel and instant response
Reproduces exceptionally detailed force feedback

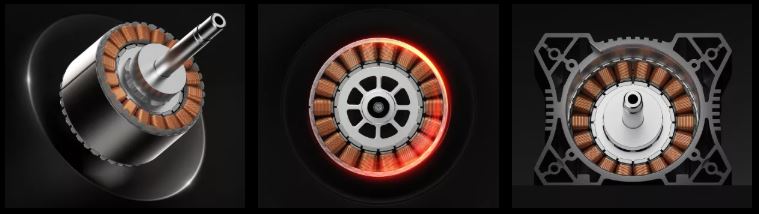

• MOZA High-Performance Servo Motor

1. High Torque Density
   Optimized slot-fill copper windings
   High-permeability silicon steel core
   NdFeB permanent magnets for maximum output

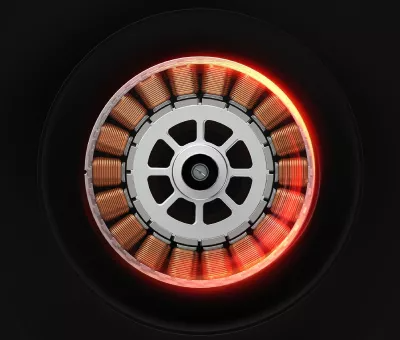

2. 18-Slot/16-Pole Configuration
   Multi-slot/pole design minimizes torque ripple
   Enhanced damping for smoother feedback
   Delivers precise and detailed steering response

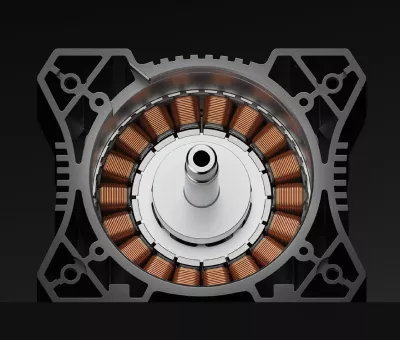

3. Wide Torque Range
   Low back-EMF design
   Maintains consistent torque at high RPM
   Eliminates abrupt torque drop-off

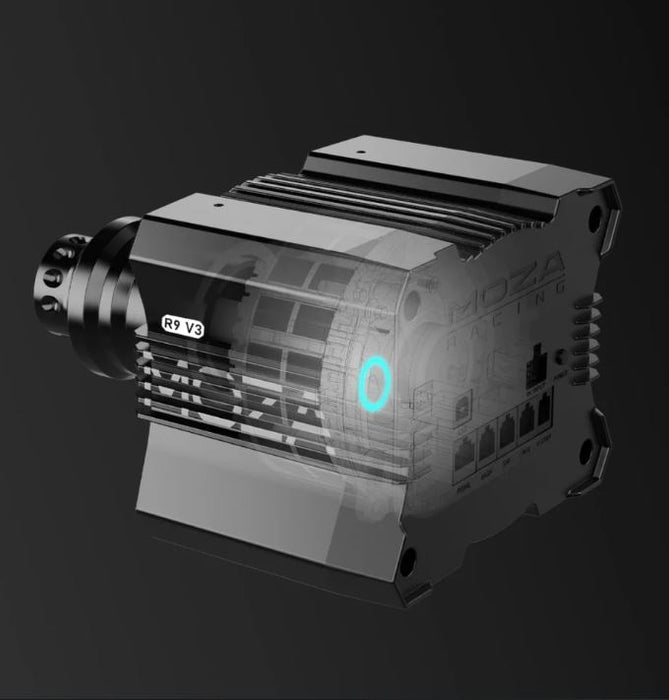

• Smart Temperature Control System

Our advanced system continuously monitors the temperature of the motor and electronic components and employs intelligent temperature control strategies to deliver stable and reliable performance in all circumstances.

• Aviation Grade Aluminum Alloy Housing


Unmatched quality and durability. The MOZA R9's whole housing is made of aviation grade aluminum alloy.

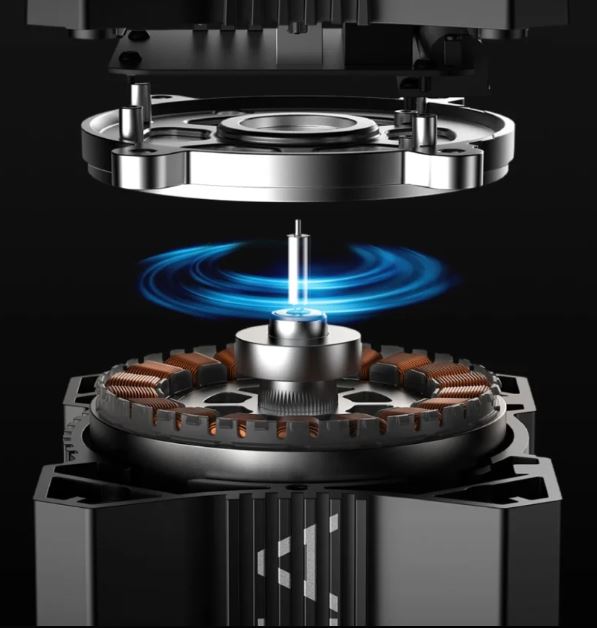

• Industrial Conductive Slip Ring


The base and the steering wheel are connected through a automotive-grade conductive slip ring with a life span of over 5 million revolutions.
The unique patented design has extremely high stability and durability while achieving infinite high-speed rotation.

• APP Cloud Control


The settings of the wheel base, steering wheel, pedals, etc. can be modified through the MOZA APP. Settings can be imported with one click onto new simulators.

Game Compatibility List

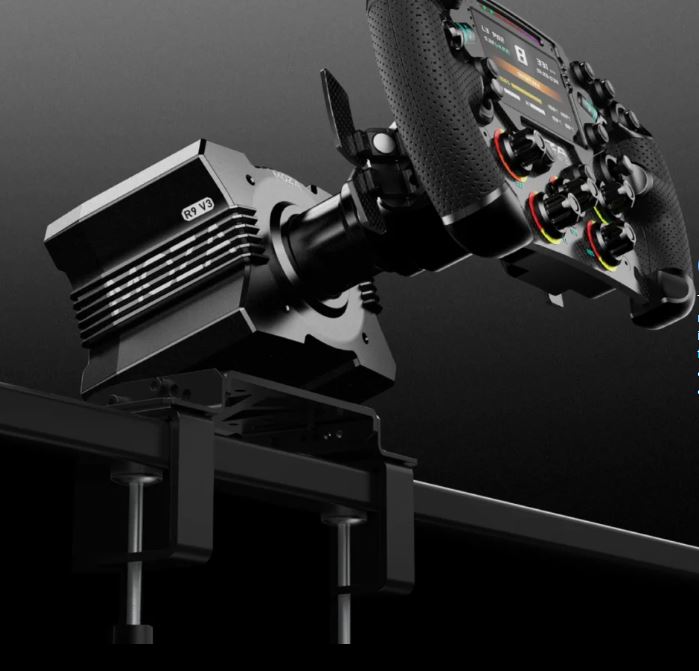

• Compact Design


The integrated motor design results in a compact size that still retains a standard 4 hole bottom mount pattern. It can be easily installed onto the vast majority of dedicated rigs and floorstands. In smaller spaces the base can be assembled with a desktop clamp, saving space whilst providing a convenient and enjoyable driving experience anytime, anywhere.

Specs

• Platform: PC
• FFB Drive System: Direct Drive
• MOZA Pit House Control: Support
• Max Wheel Rotation: 90~2700°
• Housing Material: Aviation Grade Aluminum Alloy
• Color: Black
• Peak Torque: 9 Nm
• Peak Power: 180W
• Input Voltage: 110V~220V AC —> 36V DC
• USB Refresh Rate: 1000Hz
• Encoder Resolution: 21-bits
• Indicator: YES
• App Functions: Supported
• Quick Release: Supported

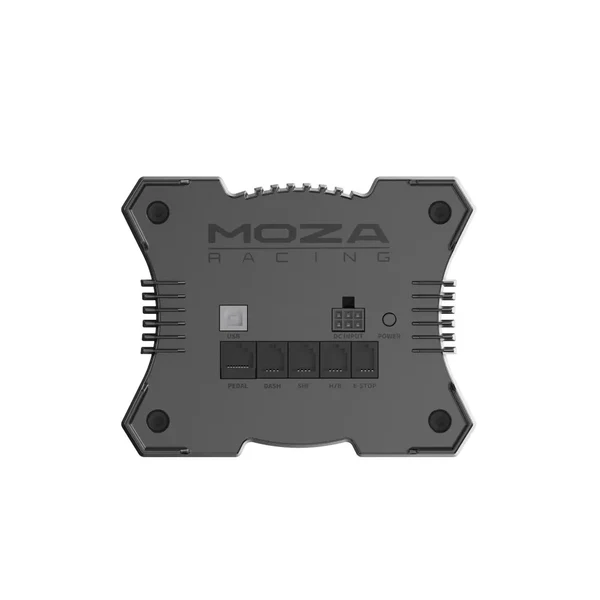

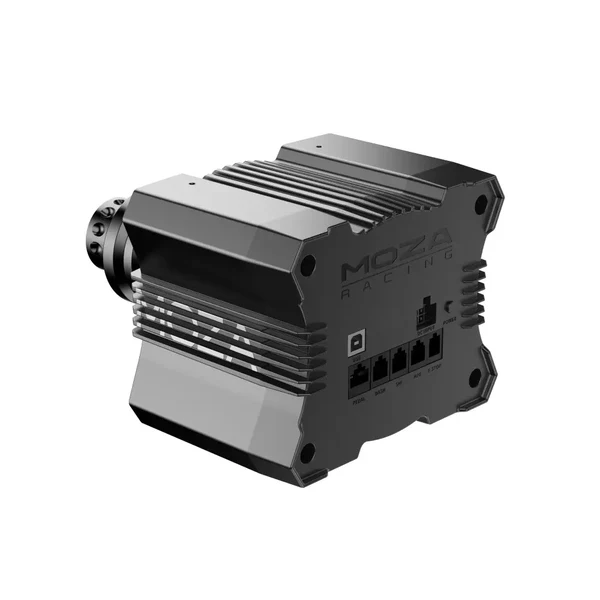

• Connection Ports: Power, DC Input, E-stop, USB, Dash, Shifter, Handbrake
• Box Contents:  R9 Wheel Base, User manual, Warranty card, Power supply, USB cable, Toolkit
• Mounting Method: Bottom mount
• Side Mount Option: With optional side mount bracket
• Desk Clamp: Optional
• Emergency Stop Switch: Optional
• Online Firmware Upgrade: Applicable
• Firmware Update: Applicable

What's Inbox

• MOZA R9 V3 Wheel Base * 1

• Power Adapter * 1

• Power Cable * 1

• USB Cable * 1

• MOZA Sticker * 1

• Toolkit * 1

• Portable Cloth Bag * 1

This item is covered with 7 days Return Policy.
Before/After filing a request, kindly reach out to Gameline CSR. (videos and pictures are required)
